Description

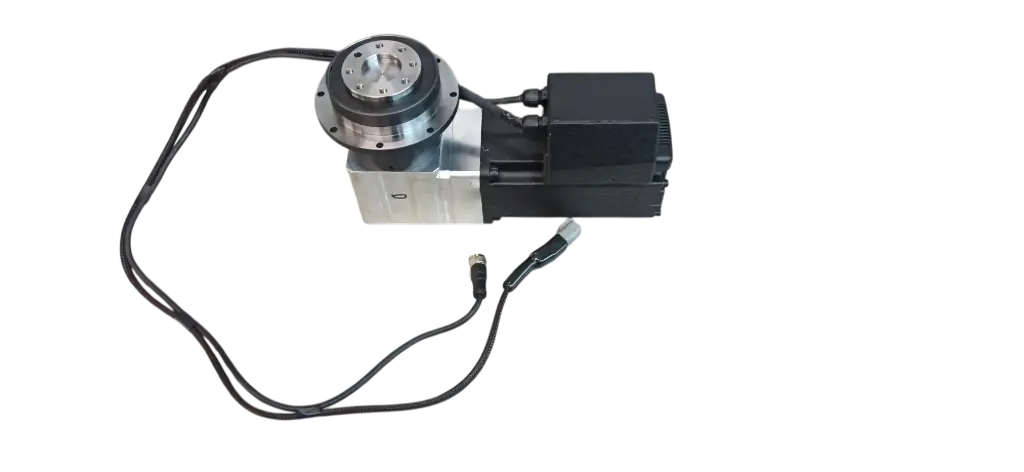

Motoréducteur gauche 750W R40 pour chenillard SRBC
This left gear motor is suitable for SRBC tracked robots of various widths. Its integrated controller is programmed to operate on an SRBC tracked robot coupled with the SRBC electrical box.
Technical specifications:
Motor type: brushless electric motor (iSV2-RS) 48V DC, with brake, integrated CANopen driver
Reducer: D90 R40 reducer with 90° bevel gear
Nominal power: 750 W
Nominal torque: 2.39 N·m
17-bit incremental magnetic encoder
CANopen interface or 16 programmable PR paths
DIP switch for ID settings, baud rate, and termination resistance
RS-232 serial interface for easy adjustment with Motion Studio
Kit contents:
1hp R40 90° gear motor pre-wired and programmed: motor phases (DT04P), M12 encoder connector
1 set of screws
