Description

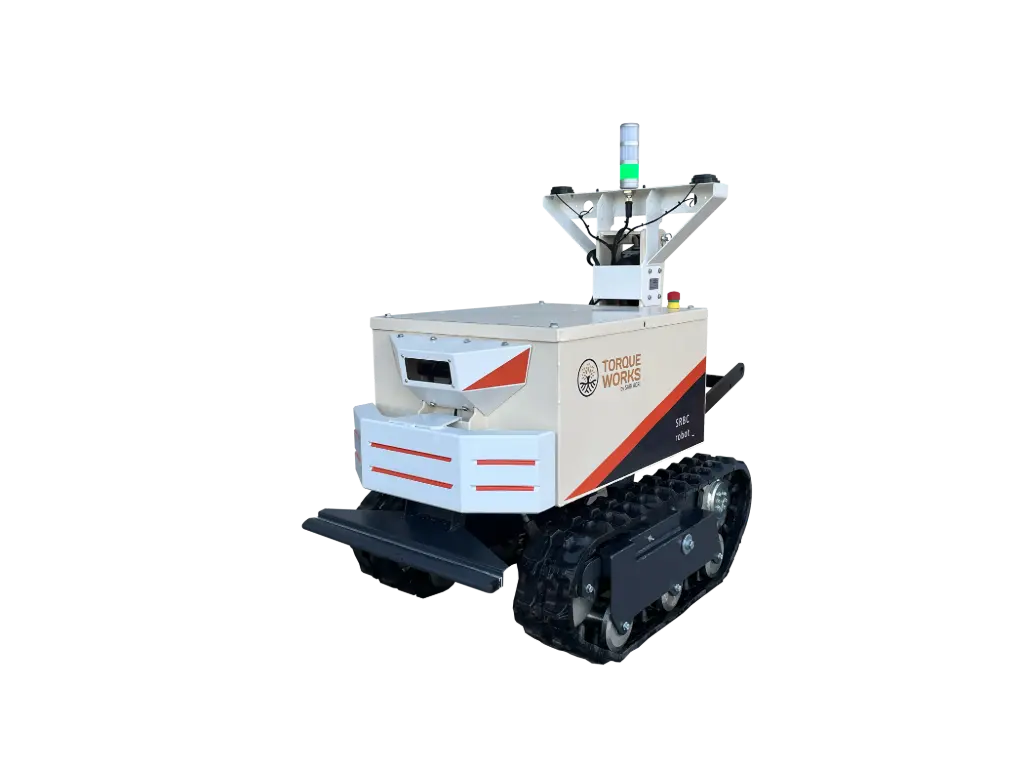

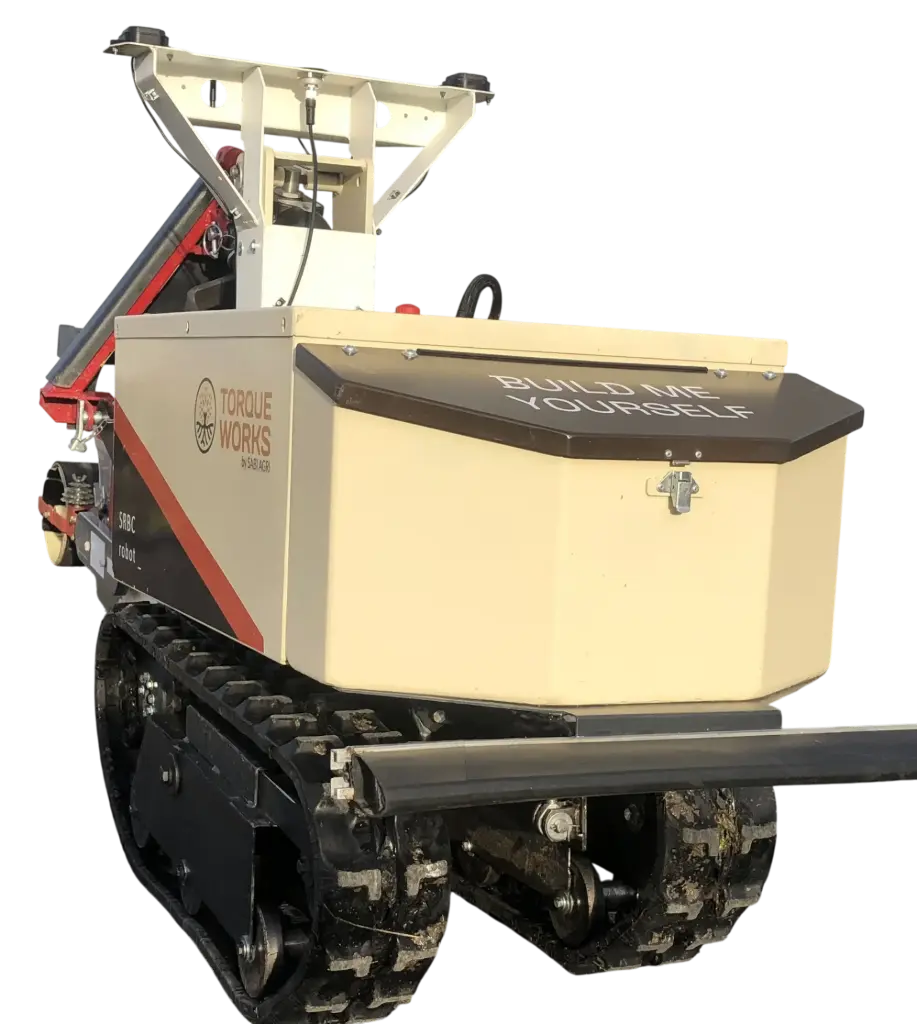

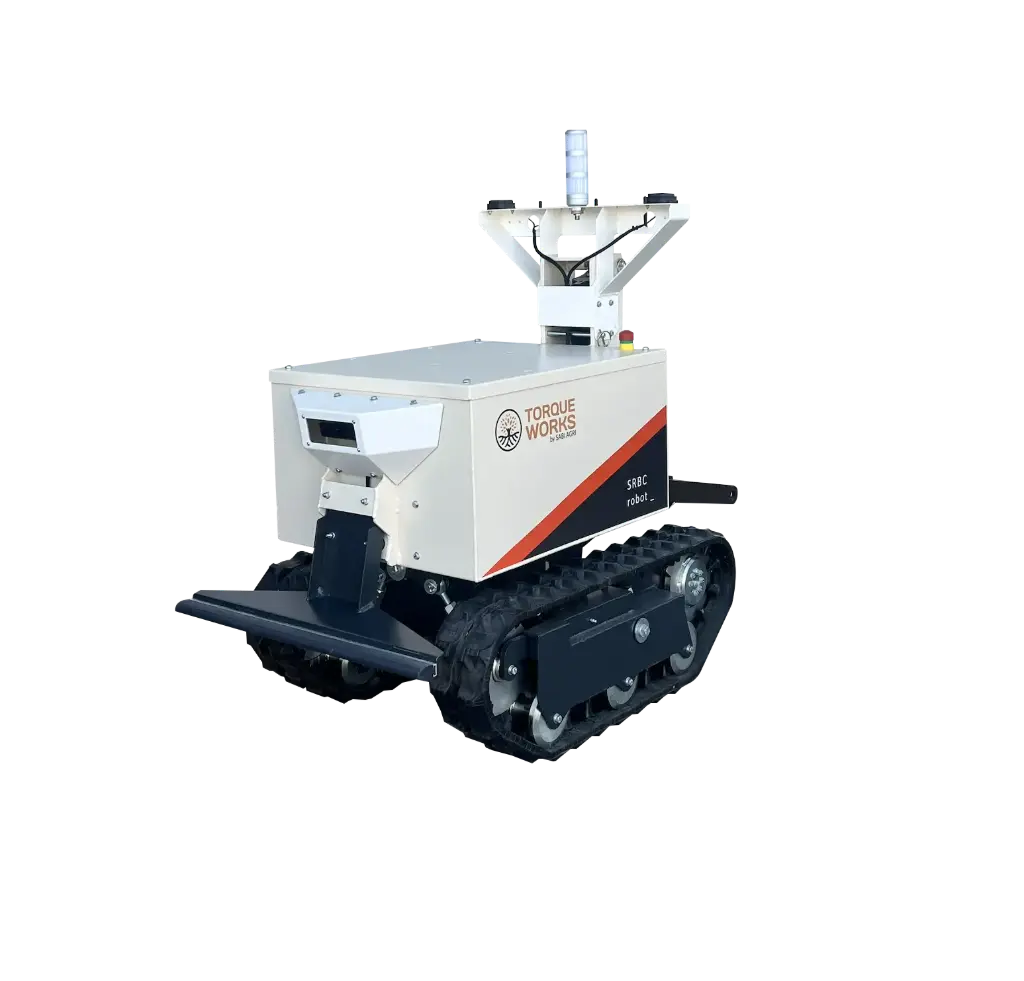

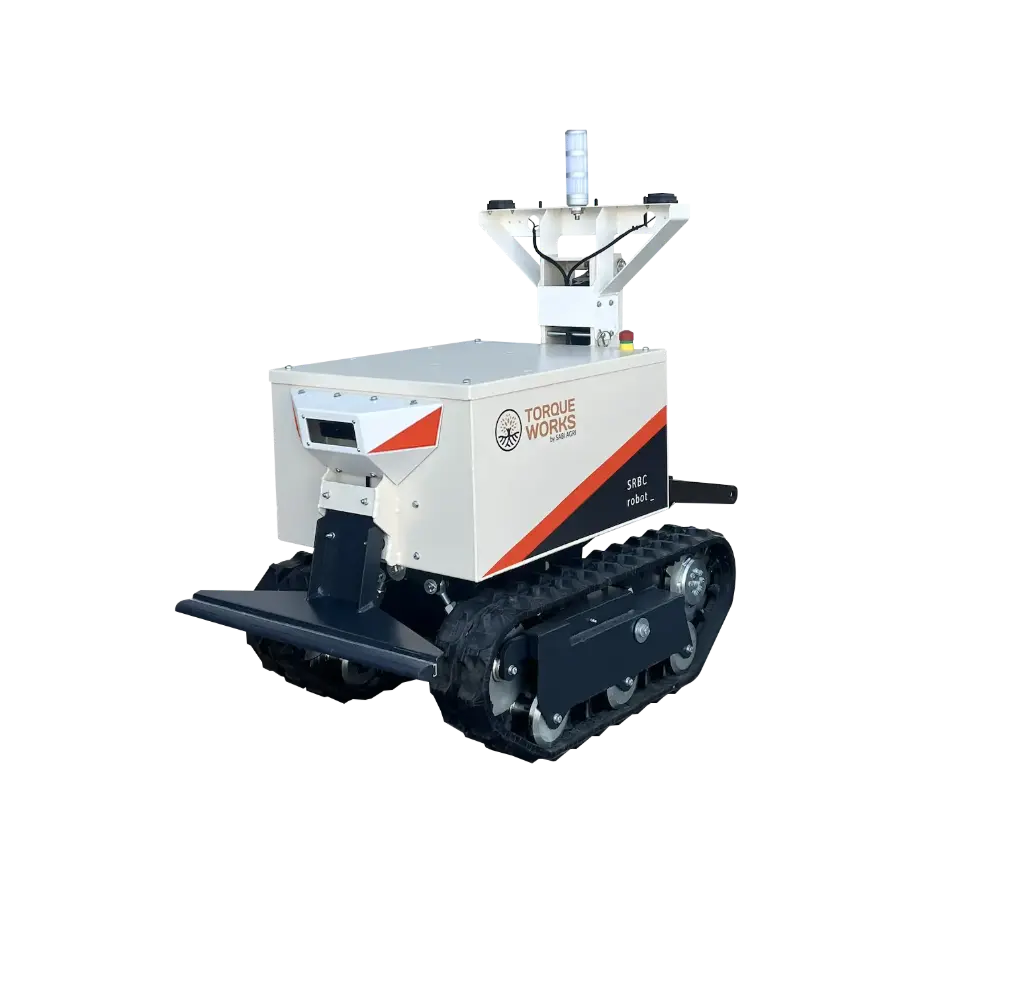

Agricultural robot kit SRBC 1500-63
This agricultural robot kit, designed and manufactured in France, offers farmers the opportunity to assemble it themselves. Affordable financially and technically, the SRBC 1500 robot allows each farmer to acquire new technological skills directly on their farm at a controlled cost and according to their needs.
The SRBC robot is a 100% electric and 100% modular agroecological tracked robot, its lightweight and versatile design allows for a wide range of uses thanks to its numerous capabilities:
Power:
- Autonomy : 3 to 12h depending on tasks (batteries 2.7 to 5.4kWh)

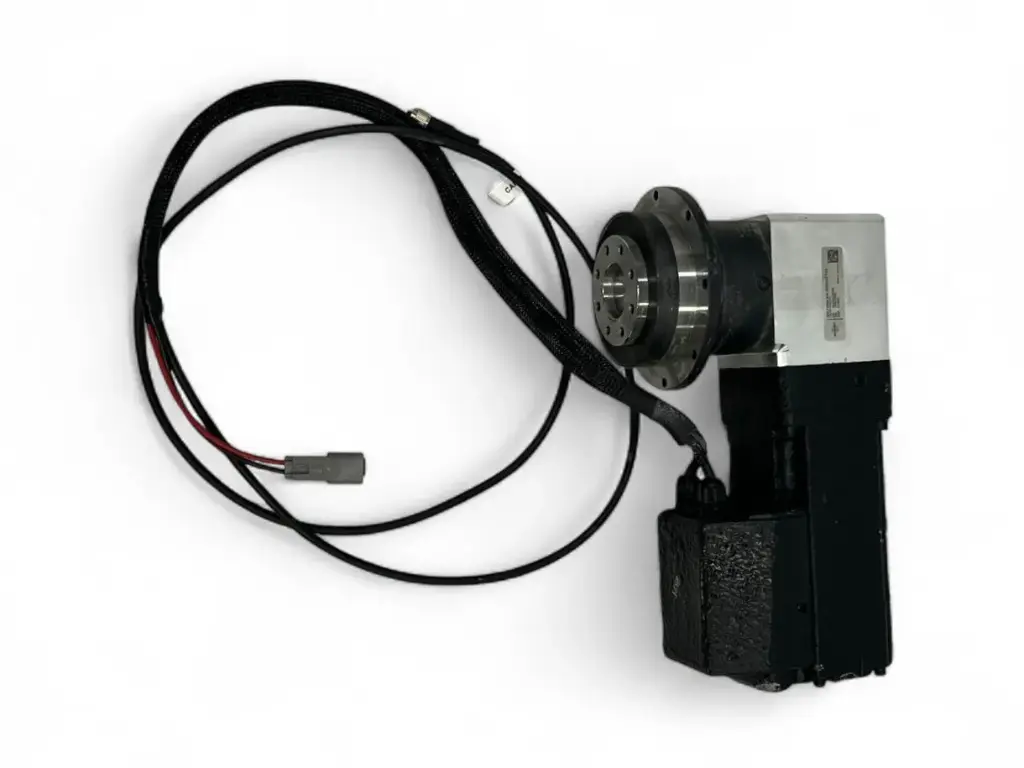

- Motorisation : 1.5kW (max speed: 3.5km/h)
- Towable load: 400 kgs
- Lifting: 250 kgs compatible with standard tools (adding weights recommended)
- Precision: centimetric RTK
- Speed: 3km/h
Versatility:
- Sowing, hoeing, mechanical weeding, light soil preparation
- Crop monitoring (scare patrols, temperature readings)
Environmental preservation:
- Zero CO2 emissions in use
- Soil preservation (empty weight less than 250kgs)
- Reduction of inputs
Work comfort:
- Ability to carry loads up to 400kgs
- Carrying out repetitive tasks
- Zero gas, zero noise
- Tiller system for soil tracking
- IOS Application (minimum IOS16) or Android (minimum 8.0) for using the robot
Dimensions:
- Length: 1150mm without lifting
- Height: 1250mm
- Overall width: 630mm
- Ground clearance: 152mm
- Empty weight: 240kgs
Kit contents:

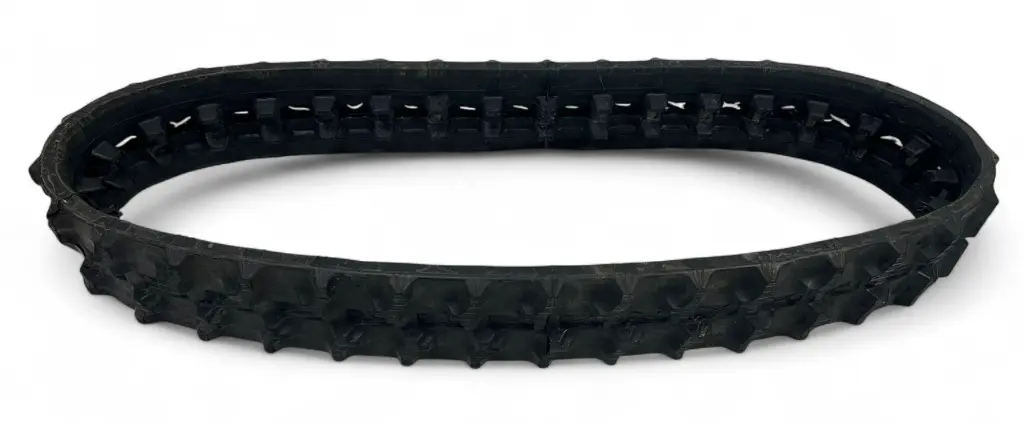

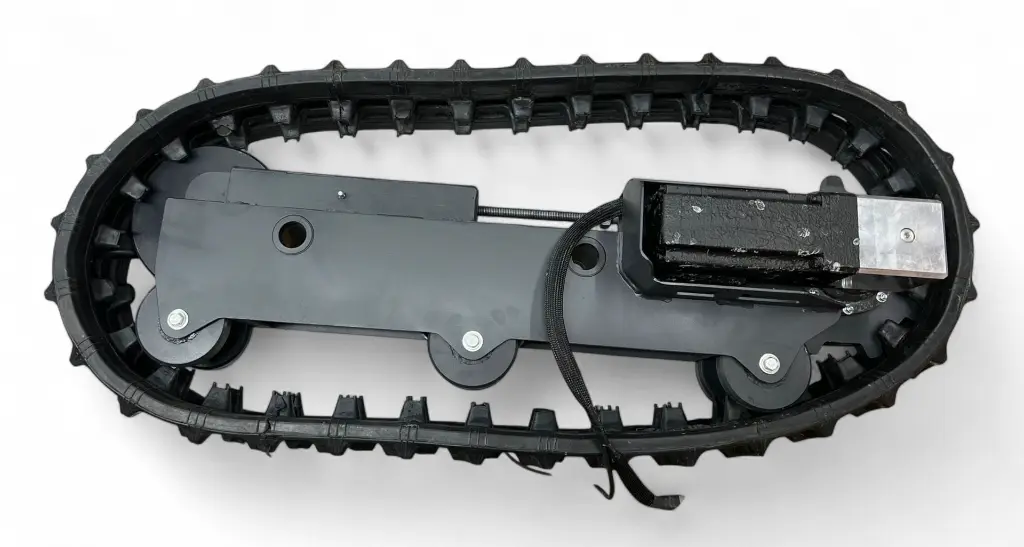

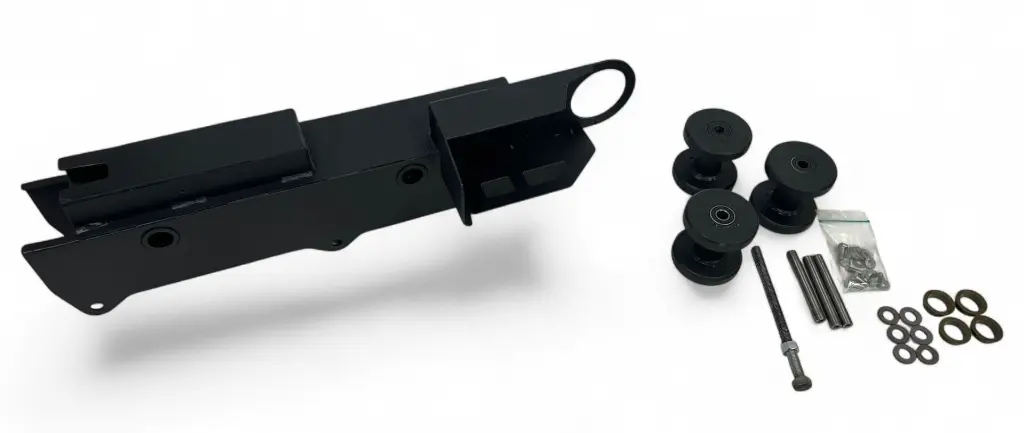

- 2 motorised tracked units to assemble
- 1 ready-to-use control and power box

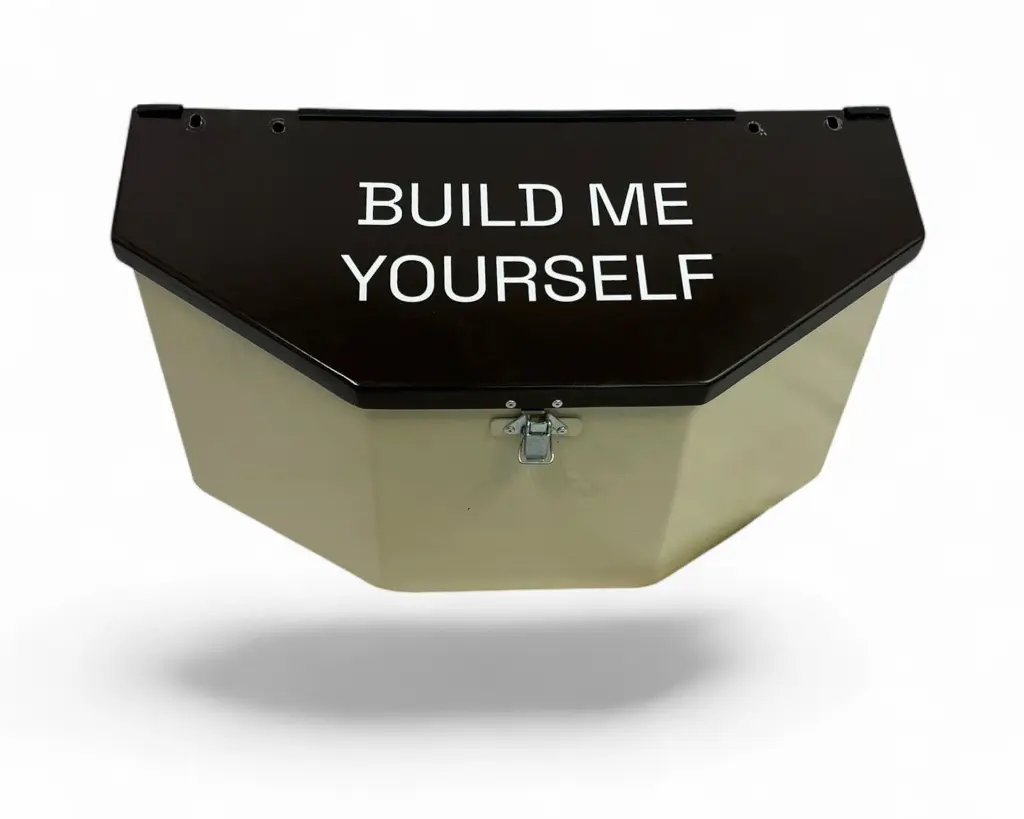

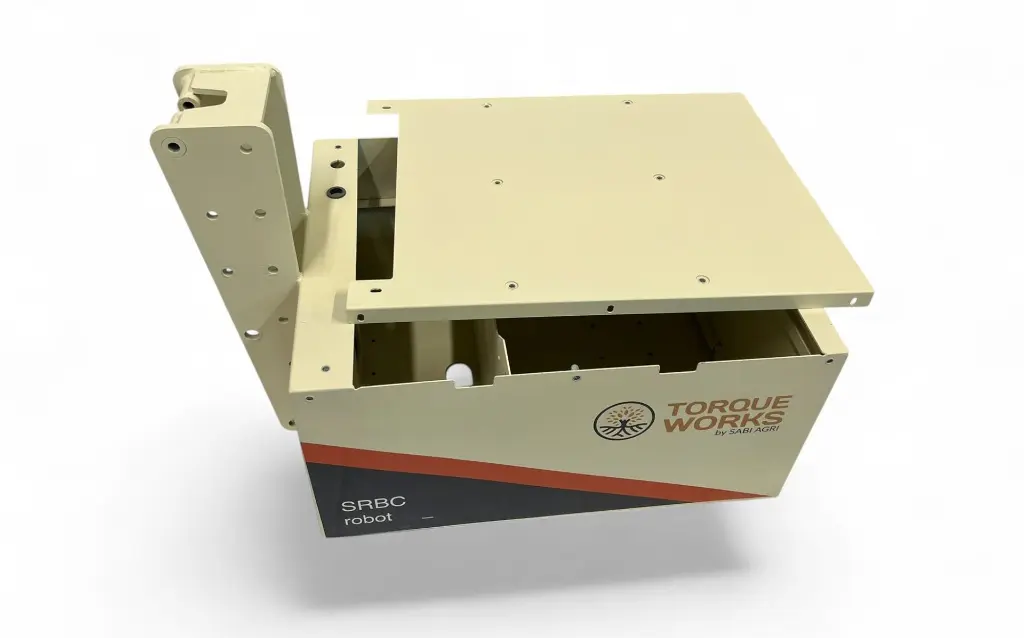

- 1 robot body to install
- 1 electric actuator lifting system to install

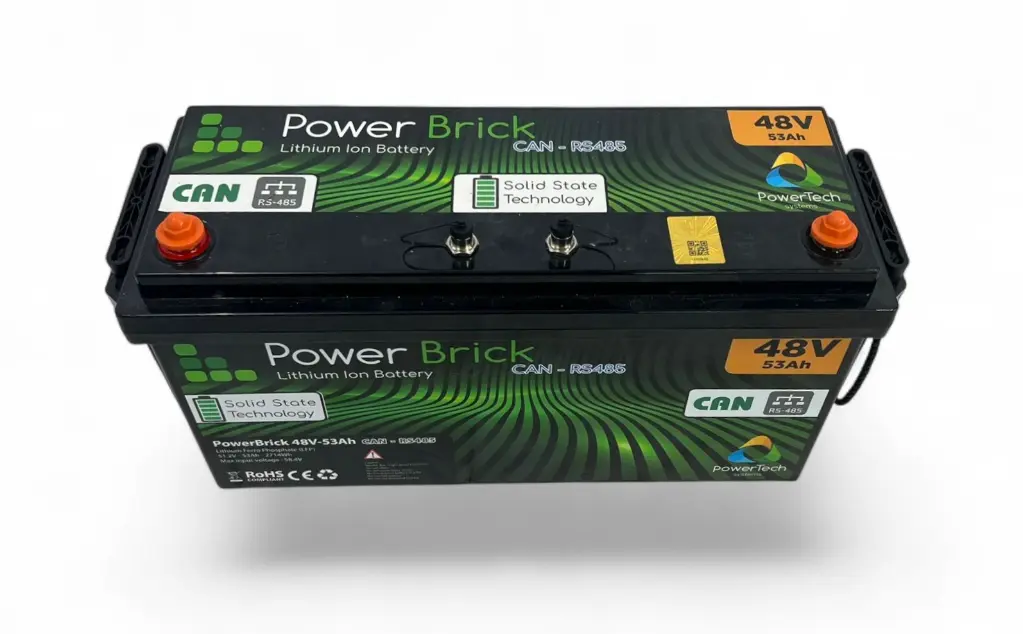

- 1 2.7kWh battery to install and connect
- 1 battery charger
- the application for use and programming
Options:
- 2nd battery plug-and-play to upgrade to 5.4kWh
- Weight masses to improve lifting capacity
- Machine-side hitch triangle
Not supplied with the robot:
- Nanosim: the subscription and nanosim to be placed in the robot for 4G connection must be purchased independently from the operator of your choice.
- Tablet or mobile phone: to ensure the application works, at least IOS 16 or Android 8.0 is required
Video presentation:
Presentation of the SRBC Robot (FR - subtitles available)
SRBC Robot - Tunnel sowing (FR - subtitles available)
Assembly of the SRBC robot (EN - subtitles available):
Additional information
Important stages of the SRBC lifecycle:
- Define your need: Torque Works support is here to help you contact@torque.works
- Order your robot
- Receive and assemble your robot with the Torque Works guide
- Validate the assembly and start using it in manual mode
- Validate the user e-training
- Use your robot in autonomous mode
Do not hesitate to contact us at each stage, our technical teams are here to help you validate your needs and our solutions.
