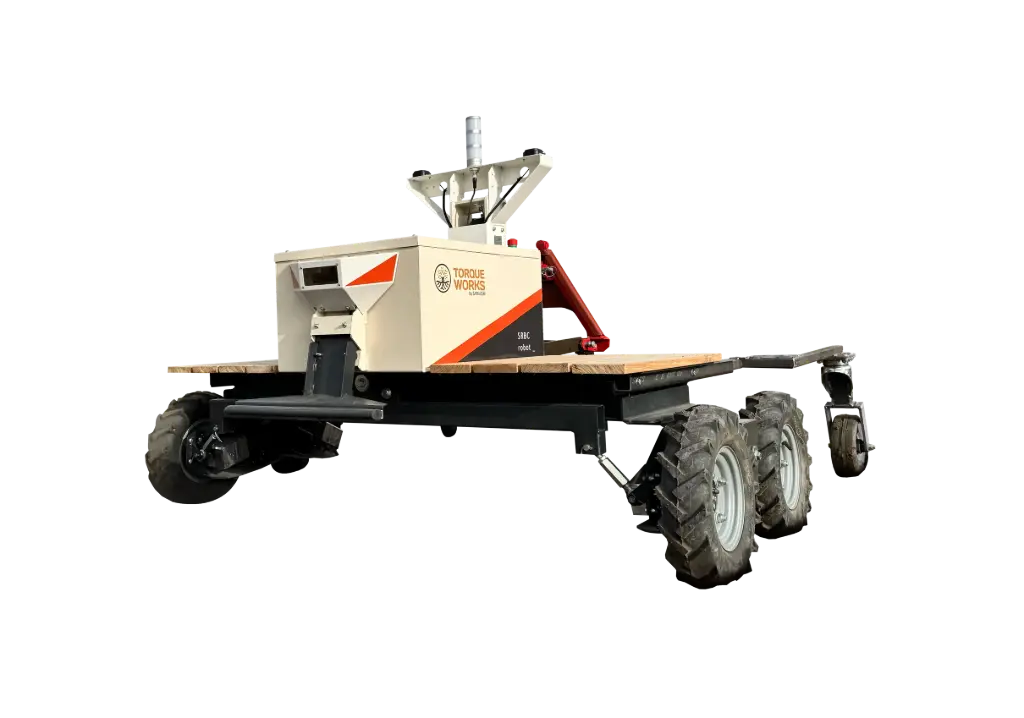

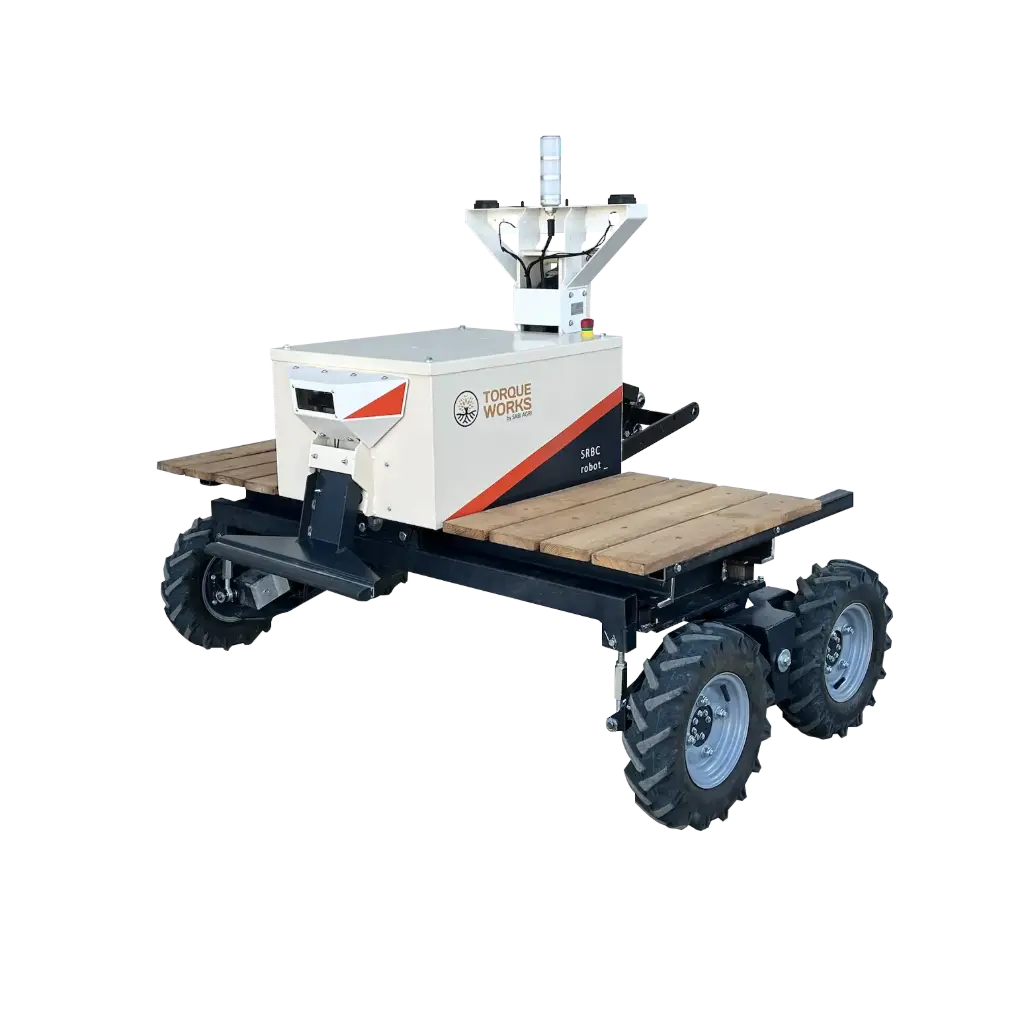

SRBC 3000-136/176 Kit Agricultural Robot
This kit agricultural robot, designed and manufactured in France, offers farmers the opportunity to assemble it themselves. Affordable financially and technically, the SRBC 3000 robot allows each farmer to acquire new technological skills directly on their farm at a controlled cost and according to their needs.
The SRBC robot is a 100% electric and 100% modular wheeled agroecological robot, its lightweight and versatile design allows for a wide range of uses thanks to its numerous capabilities:
Power:
- Autonomy : 3 to 12 hours depending on tasks (batteries 2.7 to 5.4kWh)

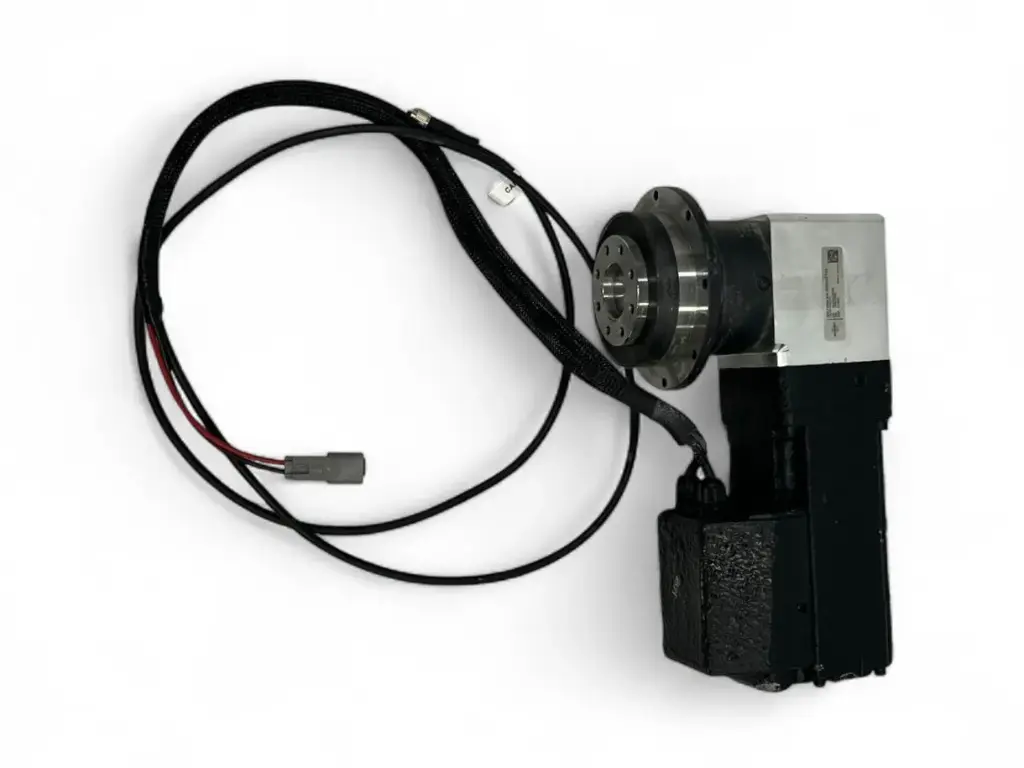

- Motorisation : 3 kW
- Towable load: 400 kg
- Lifting: compatible with standard tools
- Precision: centimetric RTK
- Speed: 0 to 3km/h
- Loading: 150 kg per rolling train
Versatility:
- Sowing, hoeing, mechanical weeding, light soil preparation
- Crop monitoring (scare patrols, temperature readings)
Environmental preservation:
- Zero CO2 emissions in use
- Soil preservation (unladen weight less than 200kgs)
- Reduction of inputs
Work comfort:
- Towing capacity up to 400kgs
- Performing repetitive tasks
- Zero gas, zero noise
- Tiller system for ground tracking
- IOS application (minimum IOS16) or Android (minimum 8.0) for robot use

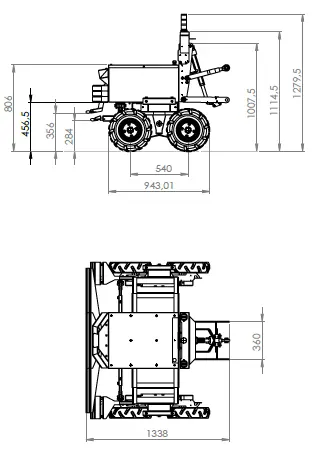

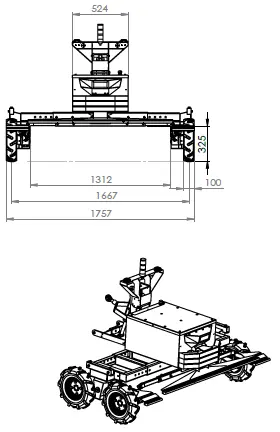

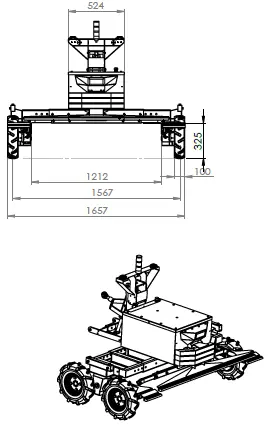

Dimensions:
- Length: 1150mm without lifting and without rear wheel
- Height: 1250mm
- Overall width: from 1360mm to 1760mm
- Ground clearance: 152mm
- Unladen weight: 240kgs
Kit contents:

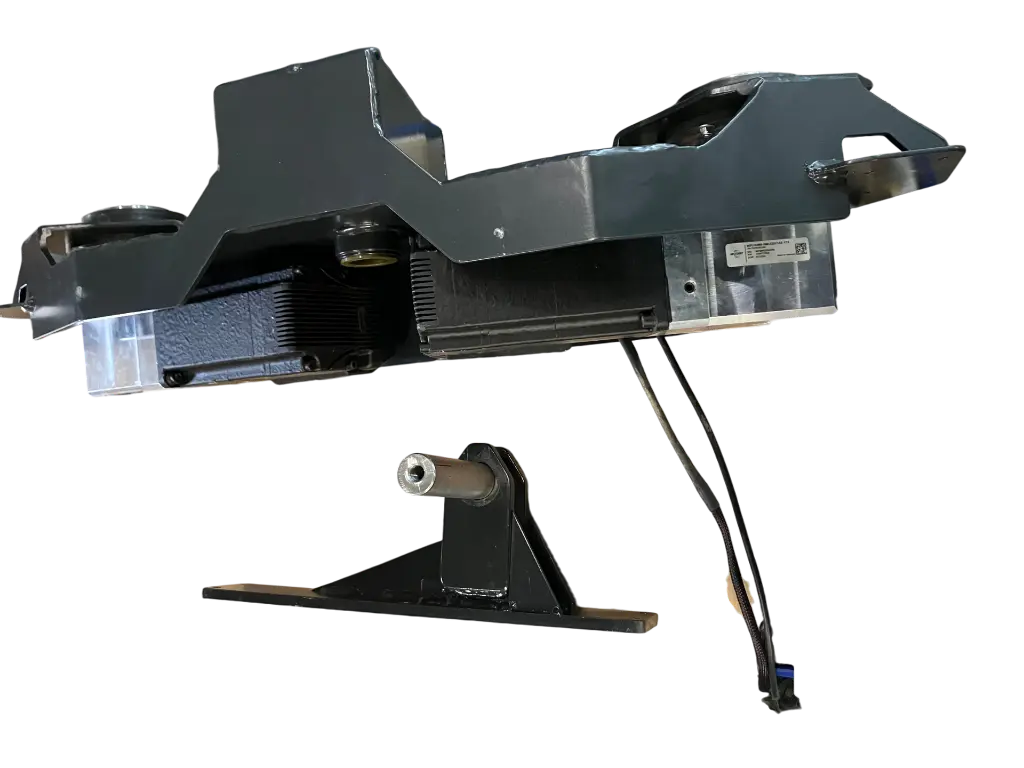

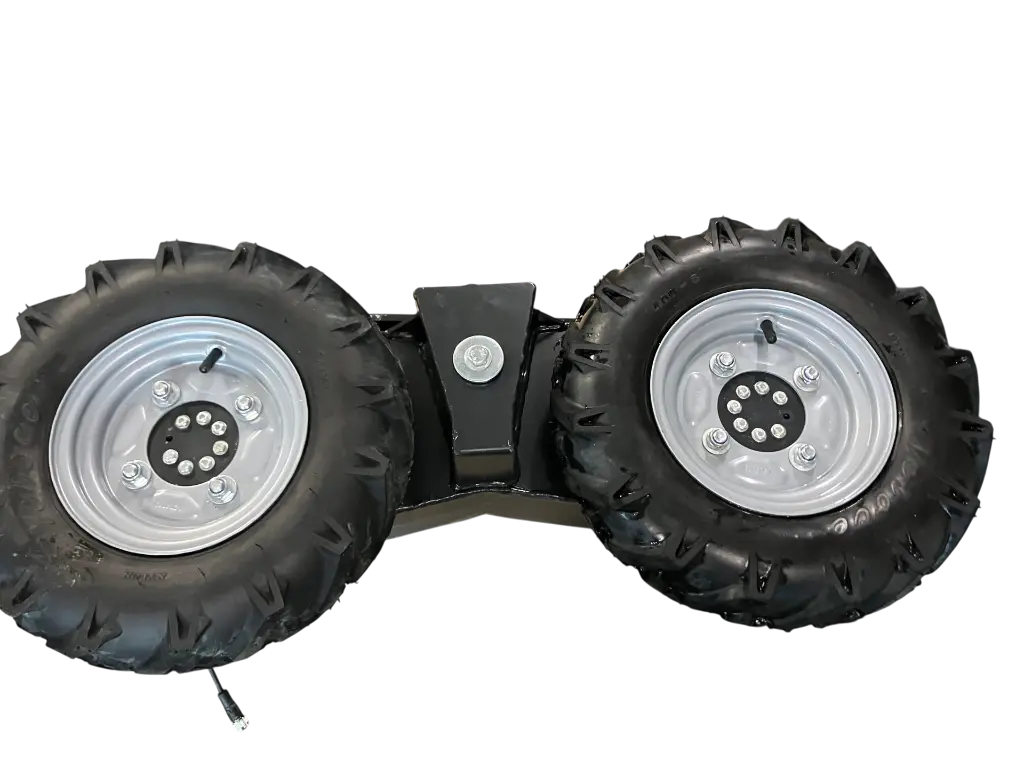

- 2 motorised rolling trains to assemble
- 1 ready-to-use control and power box

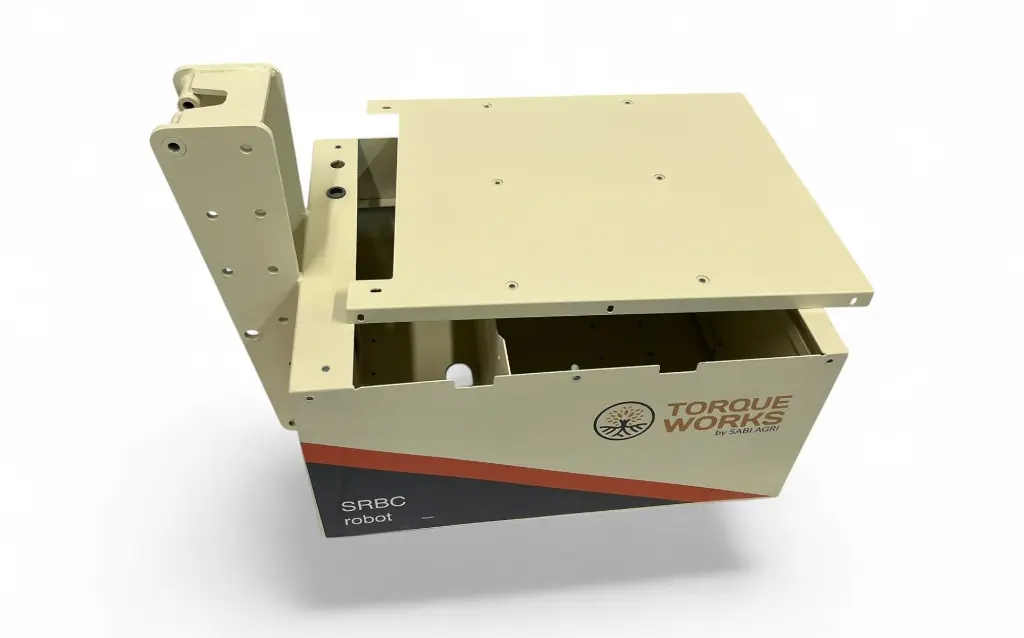

- 1 robot body to install

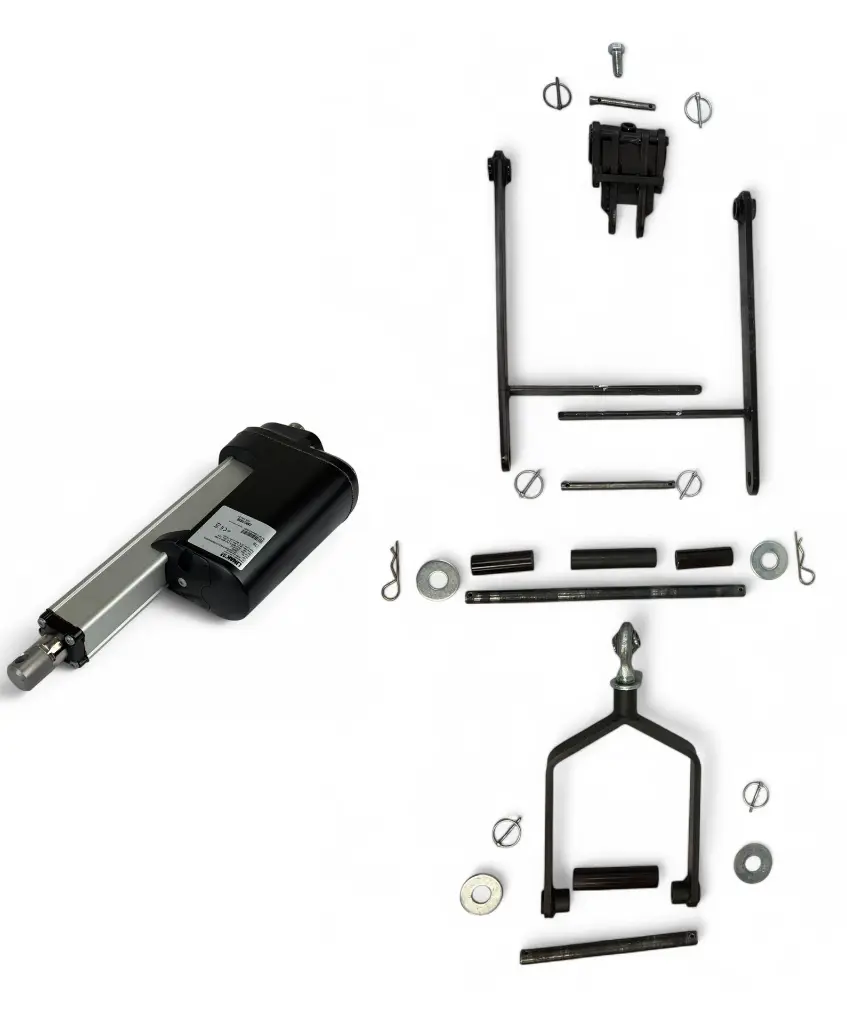

- 1 electric cylinder lifting system to install

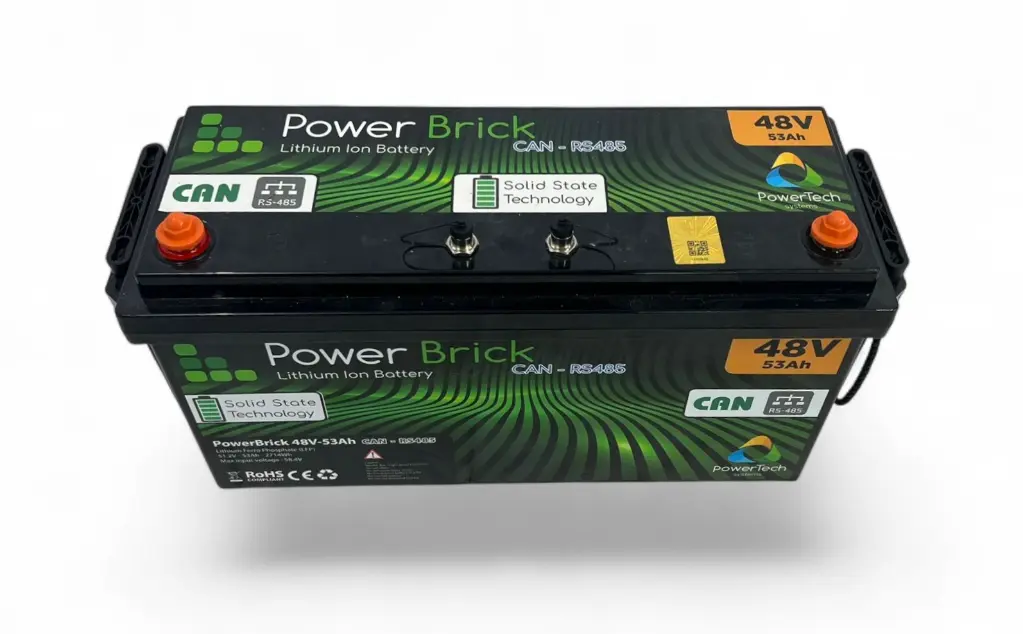

- 1 2.7kWh battery to install and connect
- 1 battery charger
- 1 platform and 2 modular slides

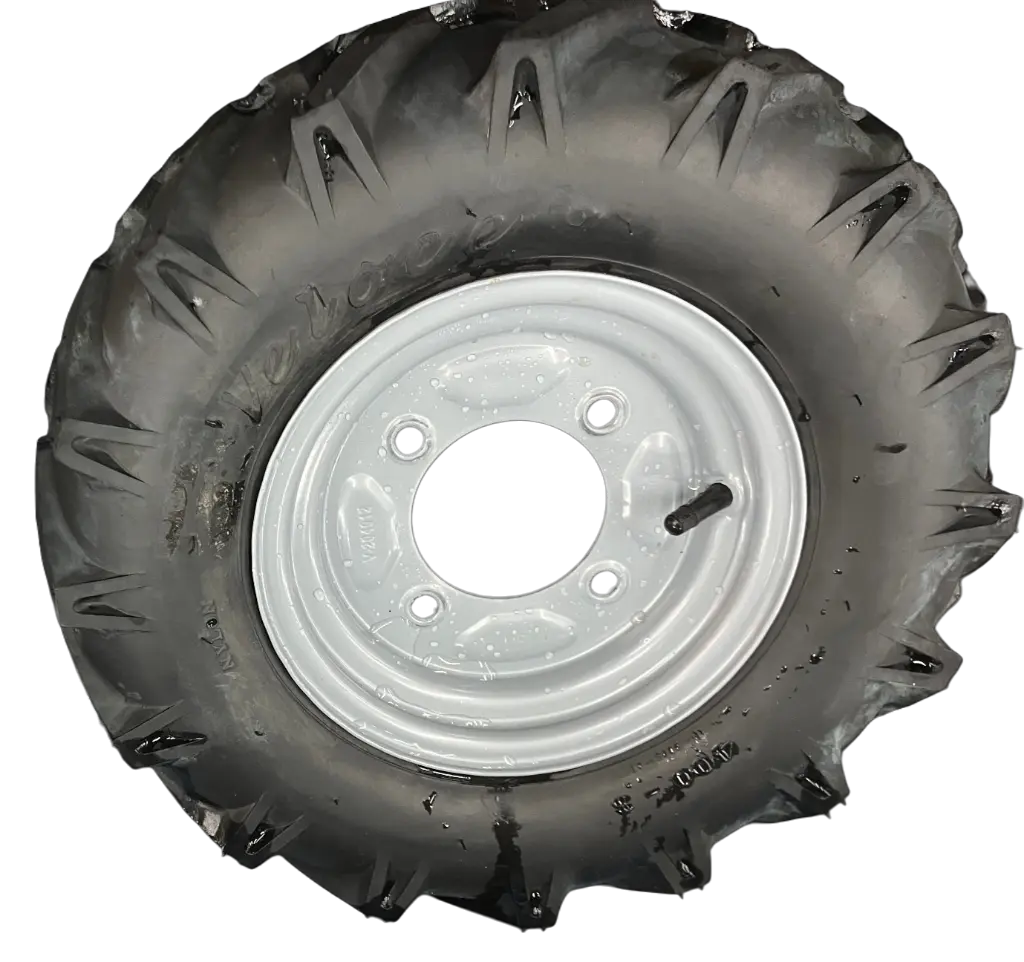

- 1 rear recovery wheel
- the application for use and programming
Options:
- 2nd plug-and-play battery to upgrade to 5.4kWh
- Weighting masses to improve lifting capacity
- Machine-side hitch triangle
Not supplied with the robot:
- Nanosim: the subscription and nanosim to be inserted into the robot for 4G connection must be purchased independently from the operator of your choice.
- Tablet or mobile phone: to ensure the application functions, a minimum of IOS 16 or Android 8.0 is required
Video presentation:
Presentation of the SRBC Robot (FR - subtitles available)
SRBC Robot - Tunnel sowing (FR - subtitles available)
SRBC robot assembly (EN - subtitles available):
Additional information
Important stages of the SRBC lifecycle:
- Define your need: Torque Works support is here to help you contact@torque.works
- Order your robot
- Receive and assemble your robot with the Torque Works guide
- Validate the assembly and start using it in manual mode
- Validate user training
- Use your robot in autonomous mode
Do not hesitate to contact us at each stage, our technical teams are here to help you validate your needs and our solutions.
