Description
750W R40 Motor – Vehicles from 100 to 300 kg or agricultural work tools
This motor is suitable for very light vehicles (100 to 300 kg). It is particularly recommended for small tracked vehicles (type SRBC 1500).
This electric gear motor, with integrated controller, offers high torque and quiet operation, ideal for electric conversion projects of agricultural tools (such as trimmers or pre-pruners).
Technical specifications:
Motor type: brushless electric motor (iSV2-RS) 48V DC, with brake, integrated CANopen driver
Reducer: D90 R40 reducer with 90° bevel gear
Nominal power: 750 W
Nominal torque: 2.39 N·m
17-bit incremental magnetic encoder
CANopen interface or 16 programmable PR paths
DIP switch for ID, baud rate, and termination resistance settings
RS-232 serial interface for easy setup with Motion Studio
Kit contents:

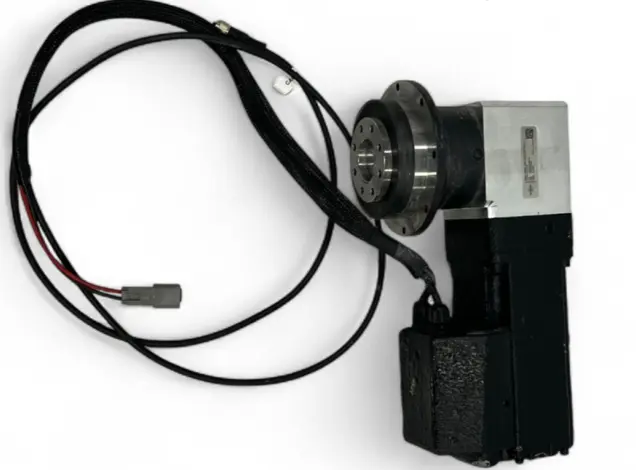

1hp R40 90° pre-wired gear motor: motor phases (DT04P), M12 encoder connector
Power harness with 10 Ohm resistance and DT04S. The power cables are without terminals.
